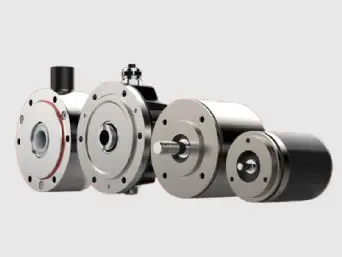

Lenord Bauer Encoders

Encoders from Lenord Bauer, Germany again find very high number of applications and installations on many European machines and systems installed in India.

We can provide authentic replacement for following of the Lenord Bauer products:

Encoders

  • Incremental rotary encoders
  • Absolute rotary encoders

Sensors

  • Contactless and wear free speed sensors
  • Temperature sensors
  • Odometers
  • Acceleration sensors

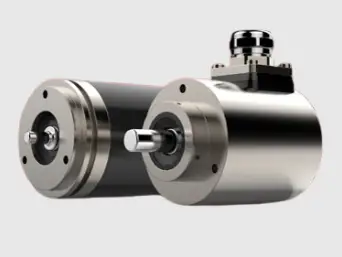

Incremental encoders

Incremental encoders are specifically used for recording the difference between the starting position and reference position of the target wheel. Readings such as speed, distance, direction of rotation, angle movement can be obtained from Lenord Bauer encoder signals.

Basic configuration and types of Lenord Bauer encoders are as follows :
Type Incremental rotary encoder GEL 207/208/209 Magnetic incremental encoder GEL 260 High resolution incremental encoder GEL 293 Magnetic incremental encoder GEL 2010
Application Industrial, cranes, ship technology Industrial/mechanical engineering Heavy industry/ship/vibration motors Food & Packaging machines, Industrial
Voltage 5 V DC or 10 to 30 V DC 5 V DC or 10 to 30 V DC 5 V DC or 10 to 30 V DC 5 V DC or 10 to 30 V DC
Number of pulses 136,192 273,408 266,240 1,024
Protection class IP 65 IP 65 IP 65 IP 67

Absolute rotary encoders

An absolute rotary encoder basically provides unique code or unique position values for each shaft position. Absolute encoders are installed in certain specific applications where data recording is extremely crucial.
Absolute encoders from Lenord Bauer have an absolute accuracy of 0.8 degrees.

Other features include :
  • Unaffected by dirt/moist, dew point resistant
  • Can withstand heavy shocks and vibrations
  • Stable temperature behavior over a long term
  • Redundant position signals can also be provided
Basic configurations :
Type Magnetic absolute encoder GEL 2037
Application Windmill , mechanical engineering
Supply voltage 5 V DC or 10 to 30 V DC
Resolution per revolution 8192 steps (32 bit)
Number of revolutions 4096 (12 bit)
Protection class IP 65
Interface SSI
Flange dimension 58 mm

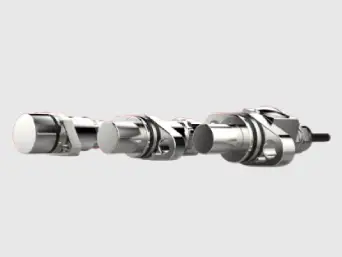

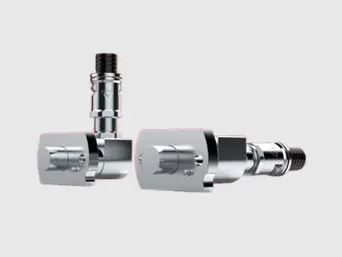

Contactless and wear free speed sensors

Speed sensors from Lenord Bauer basically detect linear motion and rotational motion of the target wheels.

Fields of application Rail vehicles, mobile machines, traction control
Supply voltage 10 to 30 V DC
Measuring range available 0 to 20 KHz, 0 to 25 KHz
Number of channel variations Up to 2
Protection class IP 68

Temperature sensors

Temperature sensors from Lenord Bauer use resistance thermometers thus providing the output measurement data as an electrical signal.

  • Measurement range : -40 to 250 degree Celsius
  • Protection class : IP 68
  • In compliance with fire protection standards EN 45545 and type tested according to EN 50155

Odometers

Odometers from Lenord Bauer are highly cost efficient and highly useful for mileage acquisition of tank wagons and good wagons.

  • Temperature range : -40 to 85 degree Celsius
  • Resistant to dirt, oil, humidity and vibrations
  • Protection class : IP 68
  • In accordance with EN 50155 IEC 61373 Category 3 and EN 50121-3-2

Acceleration sensors

These sensors from Lenord Bauer are very specifically used for measurement of tower oscillations of wind turbines.



If you would like to know more about this product

Write to us
